BUSBAR TRUNKING SYSTEM:

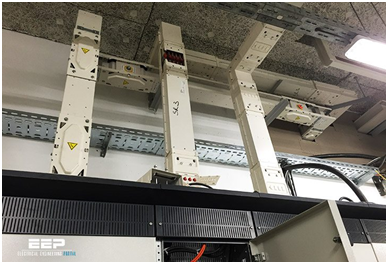

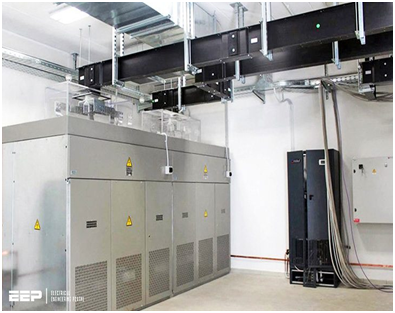

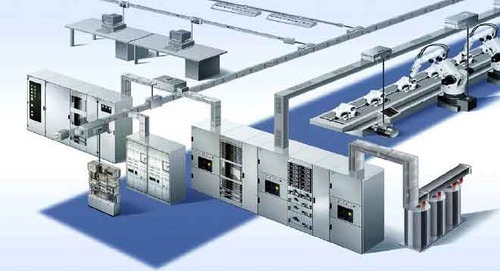

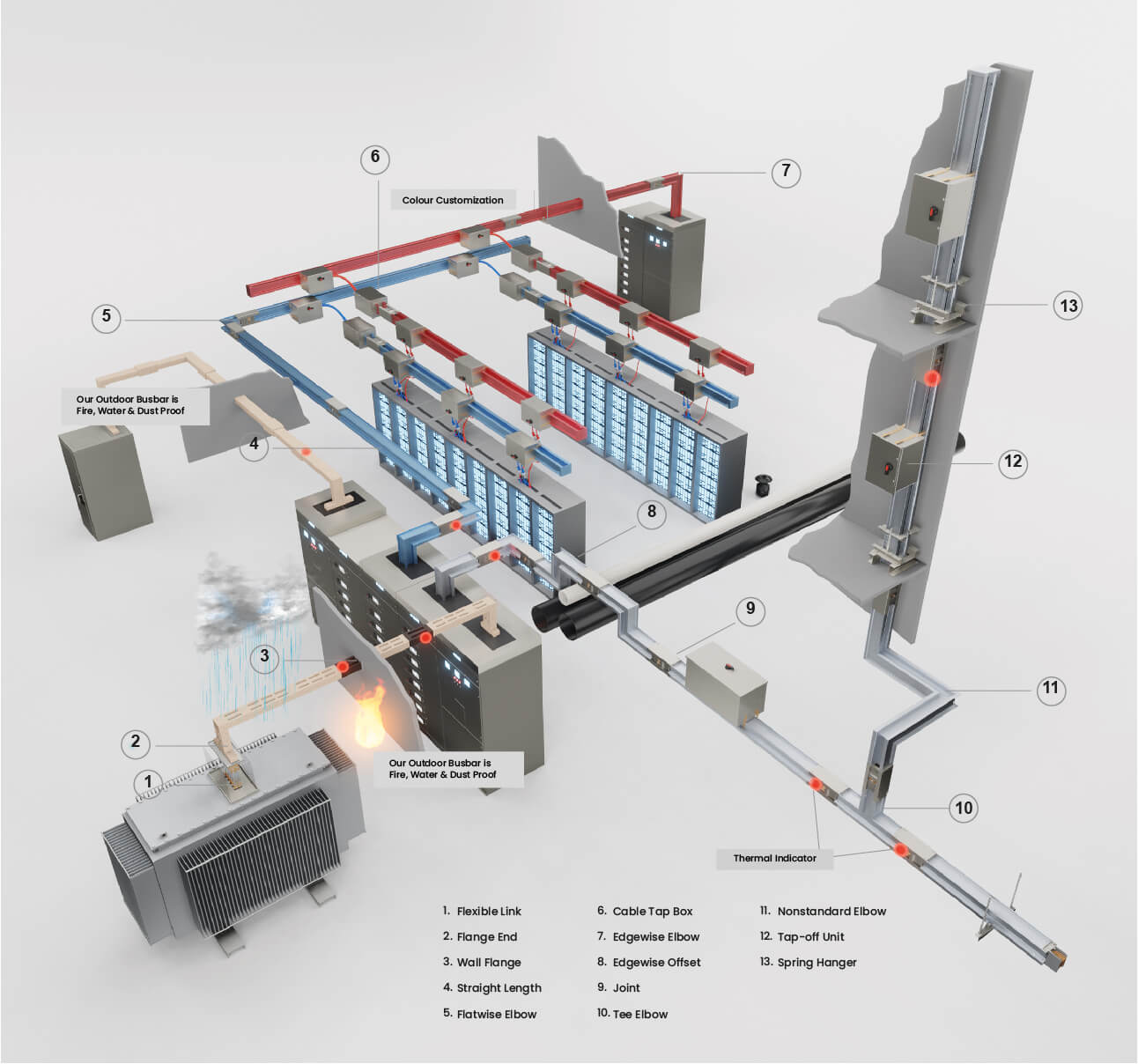

For safe power flow, busbar trunking or ducting systems are the best choice for every range of industry. Busbar Trunking System is the system of distributing electric power using copper or aluminum busbar with suitable enclosures and good amount of protection to prevent the cables from getting damaged due to foreign bodies.

Busbars have a compact design through which compressed flat conductors can pass through the enclosure. Due to the compact designs, busbars require less space than traditional cabling systems and this is a major advantage when thousands of amperes of electricity need to be transmitted. Also, busbars can absorb heat generated while transmissions and distribution of electricity in the walls of the enclosure. The system of cooling is much better than the traditional cabling system.  Busbar is easily modifiable and hence the addition of an extra room or building can be easily done. Busbars can also be relocated without much of a capital expenditure. Busbars have lower resistance than cables. Hence the loss of energy due to transmission and distribution is lower in Busbars. Busbars also have a limited growth of reactive power to operate compared to cable systems. Busbars can be mounted more easily than a cable and incurs a lesser cost of installation than traditional cables. They can also be mounted at a lesser time than traditional cables.

So SYSCON can provide you Siemens & Schneider based busbar trunking systems for your industry as well as design if required. We have more than 12 Years experienced engineer & technician in that field.
